Model

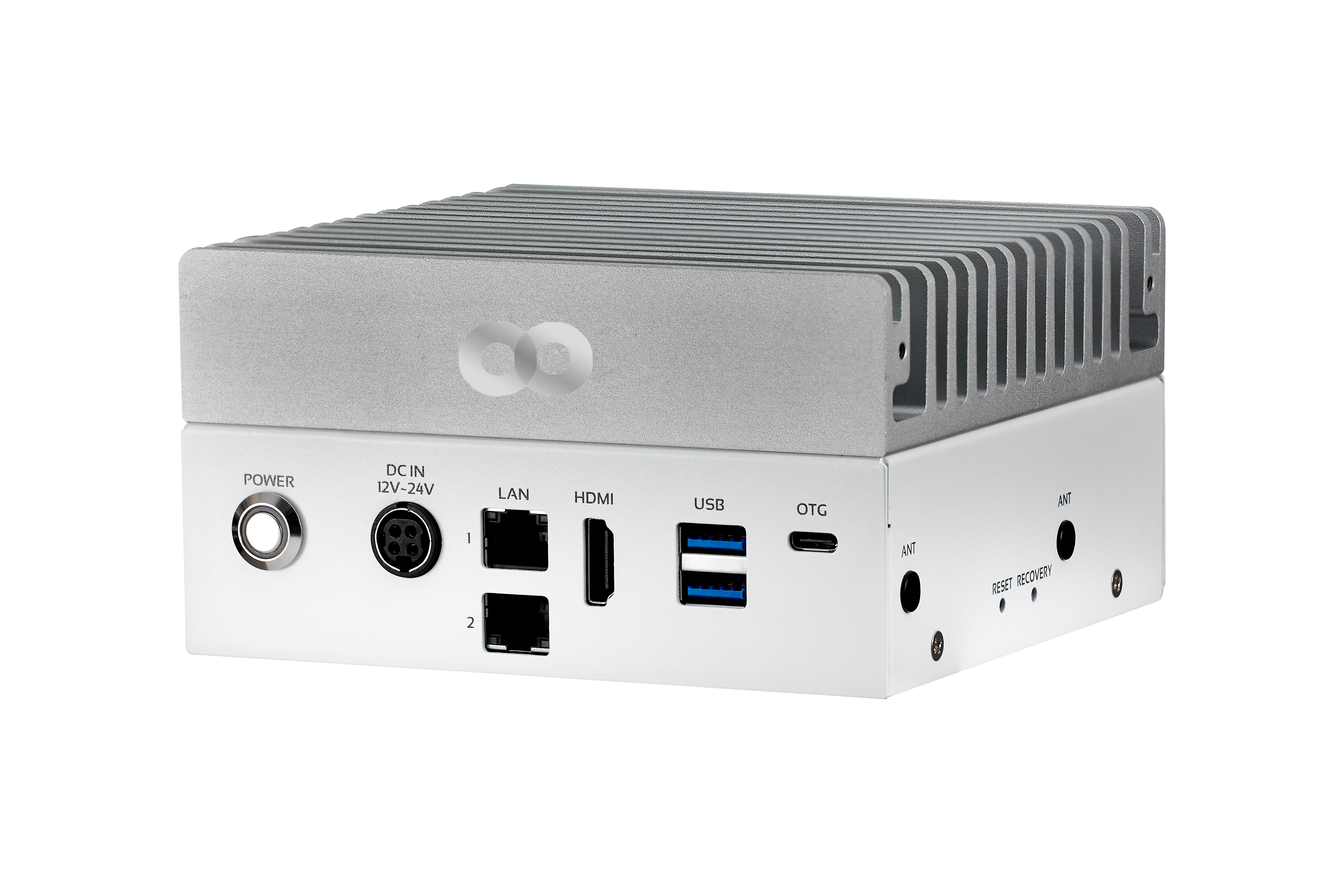

TTS-MLA01-NVnx08128
Module Compatibility
NVIDIA Jetson Orin NX 8GB
AI Performance
70 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU
6-core NVIDIA Arm® Cortex® -A78AE 1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 102.4 GB/s
Storage
1 x M.2 M-Key 2242 (128GB built-in)
Display
1 x HDMI 2.0 Type A
RTC
With super capacitor, battery (optional)
LAN
2 x RJ-45 GbE ports
USB
2 x USB 3.2 Gen2 Type A

1 x OTG Type-C
I/O Interfaces
5 x GPIO, 1 x UART, 1 x I2C, 1 x RS-422/485, 1 x CAN (Isolation)
Expansion
1 x M.2 B-Key 3042/3052
1 x M.2 E-Key 2230 (support PCIe x1 Gen4, USB 2.0)
1 x M.2 NVMe M-Key 2242 (128GB built-in)
MISC. Function
1 x Power Button, 1 x Recovery Button, 1 x Reset Button

1 x RS-232, 1 x RS-422/485, 1 x CAN 2.0b with isolation
Power Input/Connector
DC-in 12-24VDC / 4-Pin DC Jack Power Connector
Power consumption
Idle: 6.4 W

Full Loading: 35.45* W
Dimension (WxDxH)
135 x 124 x 89 mm (5.31 x 4.88 x 3.5 in)
Mounting
Wall Mount / Din Rail (optional)
Net Weight
1.36 kg (3 lb)
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating: -25°C ~ +55°C (-13°F ~ +131°F)

Storage: -25°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
OS Support
Ubuntu 20.04
Certification
CE/FCC Class A
